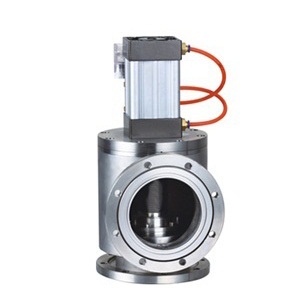

Model GDQ pneumatic high vacuum baffle valve

Model GDQ pneumatic high vacuum baffle valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

GDQ type pneumatic high vacuum flapper valve GDQ series pneumatic high vacuum flapper valve (with corrugated seal) is driven by compressed air, through the electromagnetic steering valve to change the direction of the air passage, drive the cylinder piston up and down, drive the valve stem up and down movement, so that the valve plate opens or closes, so as to achieve in the vacuum system on or off the air flow. The purpose of it. The GDQ-j type is the angle pass type, and the GDQ-s type is the three way with the pre draining.

Type GDQ series pneumatic high vacuum baffle valves are suitable for working air and non corrosive gases.

Main technical performance

適用范圍(Pa)
105~1.3x10-6
閥門漏率(Pa.L/S)
≤1.3x10-7
介質溫度(℃)
-30~+150(密封材料為氟橡膠)
氣源壓力(MPa)
0.4~0.8
法蘭標準
GB4982
安裝位置
DN<300任意,dn≥300垂直< div="">
電源電壓
標準出廠:AC220V/50Hz
特殊指定:AC110V;DC24V;DC12V等
信號反饋
標準出廠:不帶反饋信號
特殊指定:磁性開關DC/AC5~240V
Main shape connection dimensions
型號
通徑(DN)
ΦD
ΦB
H
A
法蘭標準
GDQ-J10(b)/KF
10
30
12.2
180
30
GB4982
GDQ-J16(b)/KF
16
30
17.2
180
40
GB4982
GDQ-J25(b)/KF
25
40
26.2
200
50
GB4982
GDQ-J40(b)/KF
40
55
41.2
210
65
GB4982
GDQ-J50(b)/KF
50
75
52.2
276
70
/
Connecting flange dimensions of looper flange
型號
通徑(DN)
ΦD
ΦB
H
A
n-ΦC
DNy(預抽口)
法蘭標準
GDQ-J50(b)
50
110
90
276
70
4-Φ9
/
GB/T6070
GDQ-J63(b)
63
130
110
283
88
4-Φ9
/
GB/T6070
GDQ-J80(b)
80
145
125
314
88
8-Φ9
/
GB/T6070
GDQ-J100(b)
100
165
145
338
108
8-Φ9
/
GB/T6070
GDQ-J125(b)
125
200
175
424
128
8-Φ11
/
GB/T6070
GDQ-J(S)150(b)
150
220
195
482
138
8-Φ11
DN40(GB4982)
JB919
GDQ-J(S)160(b)
160
225
200
482
138
8-Φ11
DN40(GB4982)
GB/T6070
GDQ-J(S)200(b)
200
285
260
620
200
12-Φ11
DN50(GB/T6070)
GB/T6070
GDQ-J(S)250(b)
250
335
310
655
208
12-Φ11
DN50(GB/T6070)
GB/T6070
GDQ-J(S)300(b)
300
380
350
783
250
8-Φ14
DN80(GB/T6070)
JB919
GDQ-J(S)320(b)
320
425
395
789
250
12-Φ14
DN80(GB/T6070)
GB/T6070
GDQ-J(S)400(b)
400
510
480
1210
330
16-Φ14
DN100(GB/T6070)
GB/T6070
①GDQ-J(S)400(b)
400
500
465
1210
330
16-Φ14
DN100(GB/T6070)
JB919
GDQ-J(S)500(b)
500
610
580
1280
360
16-Φ14
DN125(GB/T6070)
GB/T6070
GDQ-J(S)600(b)
600
710
670
1512
450
12-Φ21
DN160(GB/T6070)
JB919
GDQ-J(S)630(b)
630
750
720
1512
450
20-Φ14
DN160(GB/T6070)
GB/T6070
GDQ-J(S)800(b)
800
920
890
1900
520
24-Φ14
DN200(GB/T6070)
GB/T6070

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。
