ZJHN pneumatic membrane double seat regulating valve

ZJHN pneumatic membrane double seat regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

The ZJHN pneumatic membrane double seat regulating valve adopts a double guide structure and is equipped with multiple spring recruit agencies. It has the advantages of compact structure, light weight, sensitive action, large valve capacity, accurate flow characteristics, easy disassembly and assembly. It is widely used in precise control of gas, liquid, steam and other media process parameters such as pressure, flow, temperature, liquid level to maintain at a given value. It is especially suitable for occasions with larger pressure difference and larger leakage and is not very clean. This series of products has standard type, bellows seal type, jacket insulation type and so on. The nominal pressure level of products is PN16, 40 and 64, and the caliber of valve body ranges from DN25 to 400. Suitable fluid temperature ranges from -250 to +560 degrees. The standard of leakage is grade III and IV. The flow characteristic is linear or percentage. Various varieties and specifications are available.


Pneumatic double seat regulating valve main parts material


零件名稱
材料
溫度范圍
閥體上閥蓋
HT200
-20~200℃
ZG230-450
-40~450℃
ZG1Cr18Ni9Ti
-250~550℃
ZG0Cr18Ni12Mo2Ti
-250~550℃
閥芯、閥座
1Cr18Ni9
-250~550℃
0Cr18Ni12Mo2Ti
-250~550℃
填 料
聚四氟乙烯
-40~200℃
膜 片
丁晴橡膠夾增強滌淪織物
壓縮彈簧
60Si2Mn
膜 蓋
A3


Main technical parameters of pneumatic double seat regulating valve


公稱通徑mm
25
32
40
50
65
80
100
125
150
200
250
300
400
額定流量系數kv
10
16
25
40
63
100
250
250
400
630
100
1600
2700
公稱壓力MPa
1.6 4.0 6.4
行 程mm
16
25
40
63
100
介質溫度℃
-40~230℃(常溫型),散熱片式230~450℃(中溫型),特殊訂貨-100~600℃
流量特性
直線、等百分比
法蘭標準
符合JB78-59、JB79-59標準,可按JB/79.1-94、JB/79.2-94、ANSI、JIS、DIN 等標準訂貨生產
閥體
材質
PN
(MPa)
1.6
WCB(ZG230-450) CF3CF8 CF8M
4.0,6.0
WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M
閥芯材質
1Cr18Ni9、0Cr18Ni12Mo2Ti CF8 CF8M
上閥蓋型式
普通式(常溫型),熱片式(中溫型)
可調比
30:1
氣源接頭
M16×1.5


Note: ANSI, JPI, JIS flange products can be provided for users, and the flange distance is determined according to user needs.


Pneumatic double seat regulating valve actuator


型 號
ZHA(B)-1
ZHA(B)-2
ZHA(B)-3
ZHA(B)-4
ZHA(B)-5
ZHA(B)-6
you效面積cm2
200
280
400
630
1000
1600
行 程mm
10
16
25
40
60
1000
彈簧范圍KPa
20~100(標準);20~100、40~200、20~60、60~100、80~240


Performance index of pneumatic double seat regulating valve


項目
指標值
基本誤差%
不帶定位器
±5.0
帶定位器
±1.0
回差%
不帶定位器
3.0
帶定位器
1.0
死區%
不帶定位器
3.0
帶定位器
0.4
允許泄漏量L/h
1×10-3×閥額定容量


Accessory Locator: Electric Valve Locator Handwheel Solenoid Valve Limit Switch Electric/pneumatic Converter Air Filter Decompressor


Allowable pressure difference for pneumatic double seat regulating valve


供氣壓力
MPa
彈簧壓力
KPa
公稱通徑
25
32
40
50
65
80
100
125
150
200
250
300
0.14
20-100
5.4
4.4
4.9
3.8
4.7
3.6
2.8
3.75
2.7
2.15
2.0
1.7
0.24
40-200
10.8
8.8
9.8
7.6
9.4
7.2
5.6
7.5
5.4
4.3
4.0
3.4


Note: the condition of the valve stem is in the P2=0 state when the outlet of the medium is closed.

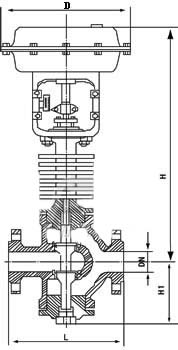

Pneumatic double seat regulating valve should be in shape and dimension.
公通徑
25
32
40
50
65
80
100
125
150
200
250
300
L
(mm)
PN1.6MPa
185
200
220
250
275
300
350
410
450
550
670
770
PN4.0MPa
190
210
230
255
285
310
335
425
460
560
740
805
PN6.4MPa
200
210
235
265
295
320
370
440
475
570
750
820
H
(mm)
普通型
567
570
645
650
877
887
899
1058
1068
1110
1498
1574
散熱片型
697
700
775
780
1040
1050
1062
1257
1267
1309
1743
1819
H1(mm)
117
120
139
144
188
208
220
268
278
320
441
503
D(mm)
225
360
470
620
重量(KG)
33
35
47
51
98
111
148
236
292
433
760
920

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。
