ZJHPF46 pneumatic diaphragm fluorine regulating valve

ZJHPF46 pneumatic diaphragm fluorine regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZJHPF46 pneumatic membrane lined tetrafluoroethylene (F46) single-seat control valve is a corrosion-resistant through single-seat control valve. The valve body wall and the valve inner components in contact with the fluid are all made of high-pressure injection molding technology, lined with corrosion-resistant and aging-resistant polyethylene fluoride (F46), and sealed by PTFE bellows. It is widely applied to the control of acid, alkali and other strong corrosive media and toxic and volatile gases and liquids.


Characteristic


1, corrosion resistance. It is almost capable of corrosion of all media, including concentrated nitric acid and aqua regia.


2, good sealing performance. The bellows and packing are double sealed to ensure no leakage.


3, small leakage. Because the valve core and valve seat adopt soft seal, ensure no leakage.


4, equipped with HA actuators, large output and compact structure.


The product conforms to GB/T4213-92.


valve body


Type: straight through single seat ball valve.


Nominal diameter: 3/4 ", 20, 25, 32, 40, 50, 65, 80, 100, 150mm


Nominal pressure: PN1.6MPa


Flange standard: JB/T79 1~79 ? 2-94 etc.


Material: ZG230-450 lining F46


Working temperature: -40 ~ 180 C


Gland type: bolt compression type.


Packing: V PTFE packing


Valve inner assembly


Spool type: single seat plunger spool


Flow characteristics: linear characteristics and equal percentage characteristics


Valve seat and spool material: 2Cr13 lining F46


Bellows material: PTFE


Executive Agency


Type: ZHA (B) multi spring film actuator


Diaphragm material: ethylene propylene rubber, nylon cloth, NBR nylon fabric.


Spring range: 20~100, 80 ~ 240kPa


Air supply pressure: 140 ~ 400kPa


Air source interface: Rc1/4 "


Ambient temperature: -30 ~ +70 C


Type of valve action: positive or reverse actuators are used to realize valve closing or gas opening.


Accessories: positioner, air filter pressure reducer, retaining valve, stroke switch, valve position conveyor, solenoid valve, handwheel mechanism, etc.


Actuator configuration


型號
ZHA-22
ZHB-22
ZHA-23
ZHB-23
ZHB-34
ZHB-34
ZHA-45
ZHB-45
you效面積cm2
350
350
560
900
行程mm
16
25
40
60
彈簧范圍KPa
20~100(標準):40~200;
80~240; 20~60; 60~100


Allowable pressure difference
供氣壓力
彈簧范圍
允許壓差
公稱通徑
G3/4"
20
25
32
40
50
65
80
100

1.4
0.2~1.0
16
16
8
5
5
3
2.5
2
1.2

4.0
0.8~2.4
16
16
16
12
11
7
6.5
4.5
2.8

performance


Leakage: less than 0.01% of the rated capacity of the valve.


Return deviation: with locator: less than 1% of the total stroke.


Basic error: positioner: + 1% less than full stroke.


Note: Standard V PTFE packing is adopted.


Adjustable range 30:1


Kv value and stroke


公稱通徑
G3/4"
20
25
32
40
50
65
80
100
150
閥座直徑
3
4
5
6
7
8
10
12
15
20
26
32
40
50
65
80
100
150
Kv值
0.08
0.12
0.20
0.32
0.50
0.80
1.2
2.0
3.2
5.0
8
12
20
32
50
70
100
240
額定行程
10
16
25
40
60

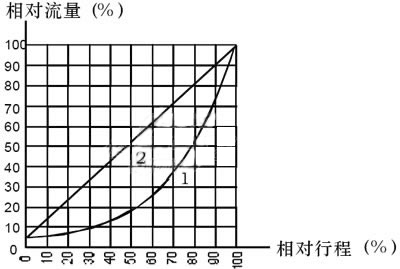

Flow characteristic curve


1. Equal percentage characteristics


2, linear characteristics

Shape size


公稱通徑
G3/4"
20
25
32
40
50
65
80
100
150
L
116
180
185
200
220
250
275
300
350
480
A
267
267
267
267
267
267
350
350
350
470
H
401
445
485
495
523
532
697
699
699
817
H1
50
65
70
80
71
88
102
140
170
190
