V230/V231D self operated pressure regulating valve

V230/V231D self operated pressure regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

V230D/V231D self-acting pressure (differential pressure) regulating valve is composed of membrane (piston) actuator, valve body, valve seat, valve core, balance spring and other components. It is a kind of valve which can automatically adjust the pressure without external energy and only rely on the change of the pressure of the regulated medium itself. It is produced by introducing the controlled medium into the actuator according to the mechanical principle. The energy-saving products with constant or reduced pressure in front or behind the valve are suitable for the pressure control of non-corrosive liquids, gases, steam and other media. They are widely used in petroleum, chemical, metallurgical, light industry and urban heating and heating systems.


Product characteristics of self operated pressure (differential pressure) regulating valve


The greatest characteristic of self-operated pressure (differential pressure) regulating valve is that it can work in the place without electricity and gas, and the pressure setting value can be adjusted at will during operation.


This product has nominal pressure PN1.6, 2.5, 4.0; nominal diameter range 20 300 mm; service temperature 300 Various varieties available.


Type specification of self pressure (differential pressure) regulating valve

category
Pressure control valve
Differential pressure control valve
Valve rear pressure regulating valve
Pressure regulating valve before valve
Differential pressure rising valve closing type
Differential pressure rising valve open type
Hard seal
Soft seal
Hard seal
Soft seal
Hard seal
Soft seal
Hard seal
Soft seal
Model
V230D01
V231D01
V230D02
V231D02
V230D03
V231D03
V230D04
V231D04
Specifications
DN15~200
Self operated pressure (differential pressure) regulating valve main parts material


Material code
C(WCB)
P(304)
R(316)
main
Spare parts
valve body
WCB(ZG230-450)
ZG1Cr18Ni9Ti(304)
ZG1Cr18Ni12Mo2Ti(316)
Valve core and valve seat
1Cr18Ni9Ti(304)
1Cr18Ni9Ti(304)
1Cr18Ni12Mo2Ti(316)
Stem
1Cr18Ni9Ti
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti
diaphragm
EPDM或FKM夾纖維
Membrane cover
A3鋼鍍鋅
filler
聚四氟乙烯,柔性石墨
Spring
60Si2Mn


Main technical parameters of self operated pressure (differential pressure) regulating valve
Nominal pathDN(mm)
20
25
32
40
50
65
80
100
125
150
200
Rated discharge coefficientKv
6.3
8
16
20
32
50
80
125
160
320
450
Noise measurement coefficient Z value
0.6
0.6
0.55
0.55
0.5
0.5
0.45
0.4
0.35
0.3
0.2
Allowable pressure difference
1.6(MPa)
1.6
1.5
1.2
1.0
4.0(MPa)
2.0
1.5
1.2
1.0
Nominal pressure(MPa)
1.6 2.5 4.0
Adjustment precision(%)
±5
working temperature(℃)
Liquid < 140; Gas < 80; Condenser < 200; Condenser and radiator < 350; Condenser and extension < 300;
Applicable medium
Holding water, gas, steam, low viscosity medium
Pressure balance element
corrugated pipe
Rolldiaphragm
Allowable leakage
Hard seal(L/h)
Less than 4 * 10-4 * valve rated capacity
Soft seal
10Bubble/min
20Bubble/min
40Bubble/min
Maximum working pressureMPa
Relationship between Nominal pressure (delta Pmax and working pressure and working temperature)
Self actuating pressure (differential pressure) regulating valve actuator
Model
V230D01(D03) V231D01(D03)
V230D02(D04) V231D02(D04)
effective areacm2
32※
80※
250
630
32※
80※
250
630
Pressure setting rangeMPa
0.3~1.2
0.1~0.6
0.015~0.15
0.005~0.035
0.3~1.1
0.1~0.5
0.015~0.12
0.005~0.035
0.8~1.6
0.05~0.3
0.01~0.07
1.0~1.6
0.05~0.25
0.01~0.06
Ensure minimum pressure difference for normal working pressure.△P MPa
≥0.05
≥0.04
≥0.01
≥0.05
≥0.05
≥0.04
≥0.01
≥0.05
Allow maximum pressure difference between upper and lower membrane chambers.MPa
2.0
1.25
0.4
0.15
2.0
1.25
0.4
0.15
Tripmm
18
18
23
23
18
18
23
23
Control pipeline, connector
Copper tube or steel pipe 10 * 1; card sleeve joint R1/4 "

Note: the pressure setting range is not applicable to DN150~200.


Self operated pressure (pressure difference) regulating valve structure

1
valve body
2
valve seat
3
Valve shaft
4
Valve cover
5
Membrane cover
6
diaphragm
7
Spring
8
Adjusting nut
9
Pressure tube
10
corrugated pipe
11
balancediaphragm
12
Filling valve

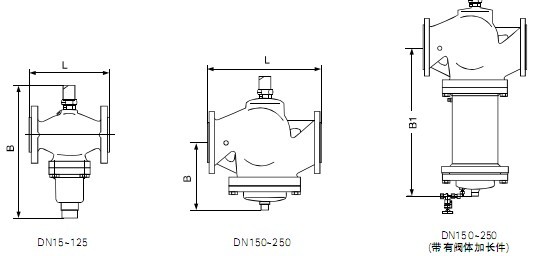

Main dimensions of self operated pressure (differential pressure) regulating valves
Body size
Nominal pathDN(mm)
15
20
25
32
40
50
65
80
100
125
150
200
L(mm)
130
150
160
180
200
230
290
310
350
400
480
600
B(mm)
212
212
238
238
240
240
275
275
380
380
295
325
Actuator size
effective areacm2
32
80
250
630
ΦR(mm)
172
172
263
380
H
D01(D03)
435
430
470
520
D02(D04)
440
435
440
520
